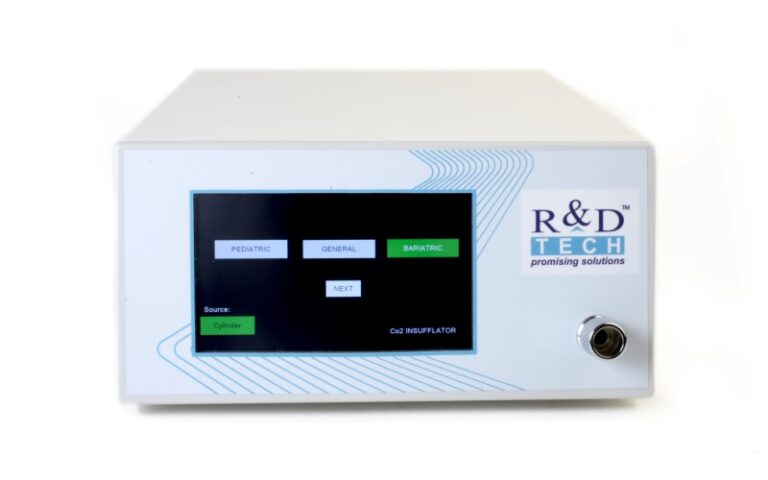

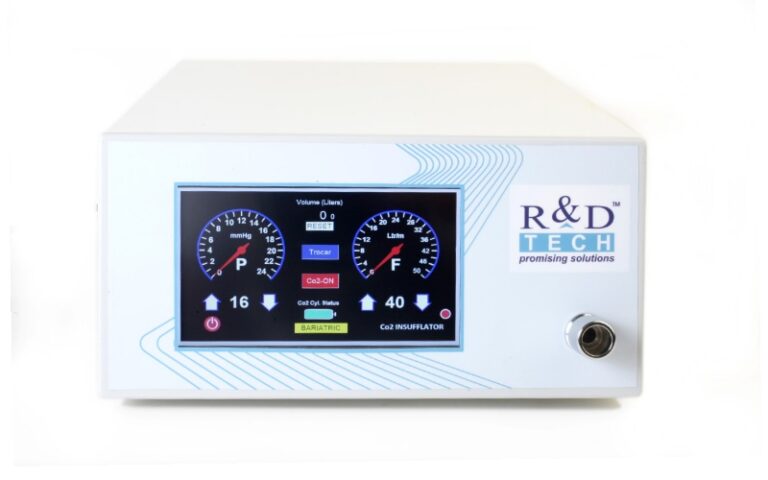

CO2 Insufflator – 30/40 lt with Gas Warmer
Truly World Class
Modern day Laparoscopy procedures are more advanced & for longer duration. They require more no. of ports which increases the gas leakage. Advancement in CO2 insufflator has to match with these demands. CO2 insufflator has been manufactured to give high flow with intelligent micro processor based feedback mechanism. All high quality components & sturdy design has made CO2 insufflator really world class. No. way inferior to any German makes.
Insufflator that enhances your monitor vision
30/40 Lt CO2 insufflator has intelligent leakage compensation ensuring fast replenishment of gas. Surgeon can keep partially open one trocar stopcock to vent out fumes generated by energy devices. The warmer patient tube delivers warm CO2 gas at tip of 2 patient tube to reduce fogging.
Ultimate Safety for patient
We use high quality senors which continuosly regulate abdomen pressure. There is no chance of wrong reading or wrong reading or wrong control. In case of malfunction unit stops & goes into error mode.
Safe veress mode
Ideally initial insufflation has to be gradual & with low flow rate. Change of mode to trocar brings back the flow rate to the preset high flow rates.
Warmer in tube and with hydrophobic filter
30/40 Lt has well controlled warmer which is built in the patient tubing to provide the warm gas o just at the point of trocar. CO2 gas at 36°C minimises fogging and also avoids Hypothermia to the patient. Hydrophobic filter is added in between the insufflatror port and the patient tube.
Technical Specifications
| Specifications | Values |
|---|---|
| Pressure range | 1 - 30 mm Hg |
| Veress mode flow rate of CO2 | 3 lt/min, fixed |
| Display and Control | 5 LED Display to show set pressure, Set flow, Actual pressure, Actual flow, Gas consumption volume, Alphabetic error messages |
| Max CO2 flow rate | 30/40 lt per min |
| Gas temperature at the inlet of trocar | 36°C |
| Automatic Self test & Venting system alarm functions | Audio alarm for over pressure & reduction in CO2 cylindrical pressure |
| Weight | 6.0kg |
| Standard Accessories | High pressure hose, 1x hydrophobic filter, Spanner, Mains cable |
| Models | 40 lt with warmer patient tube 30 lt with warmer patient tube 30 lt with silicone patient tube |
