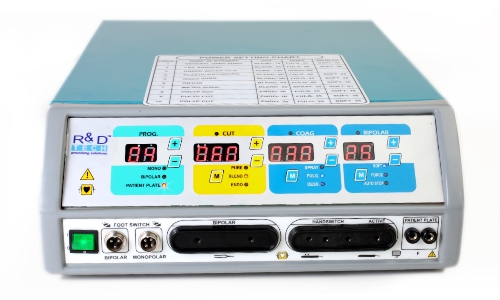

AXOR – Electrosurgical Generator
Features
-
Intelligent, Smart and Clinical (with additional sp. sercite for skin and dermosurgery)
-
Microcontroller Design
-
PPREM technology (pad patient return electrode monitoring )
-
Surgical assistance (10 program)
-
Error Indication (displays error message on the display)
-
Endo Cut (pulse cut)
-
Two bipolar modes with bipolar cut, Max Power of 150w
-
Three monopolar CUT modes, Max. Power of 200 w
-
Three monopolar COAG modes, Max Power of 150w
Standard Accessories
-
Monopolar handle with Silicon cable with electrode set
-
Bipolar forcep with Silicon bipolar cable
-
Patient plate with cable
-
Double pedal foot switch
-
Disposable hand switch
-
Mains cord
-
Unit cover
Optional accessories
-
Silicon patient plate
-
Reusable hand switch
-
Bionate bipolar forcep
-
Long 9" bipolar forcep
-
Small 4" bipolar forcep
-
Angled tip bipolar forcep
-
Monopolar bicep with cable
Monopolar CUT
| Types of current | Max-Power Watt | Rated Load ohm | Crest Factor |
|---|---|---|---|
| Pure Cut | 400W | 500 Ohms | CF 1.5 |
| Bleed Cut | 250W | 500 Ohms | CF 1.5-1.8 |
| Endo Cut | 100W | 500 Ohms | CF Variable |
Monopolar COAG
| Types of current | Max-Power Watt | Rated Load ohm | Crest Factor |
|---|---|---|---|
| Spray | 120W | 500 Ohms | CF 7.0 |
| Fulguration | 150W | 500 Ohms | CF 5.5 |
| Dessicate | 120W | 500 Ohms | CF 4.5 |
BIpolar
| Types of current | Max-Power Watt | Rated Load ohm | Crest Factor |
|---|---|---|---|
| Soft (Micro) | 70W | 100 Ohms | CF 1.5 |
| Force (Macro) | 90W | 100 Ohms | CF 1.5 |
